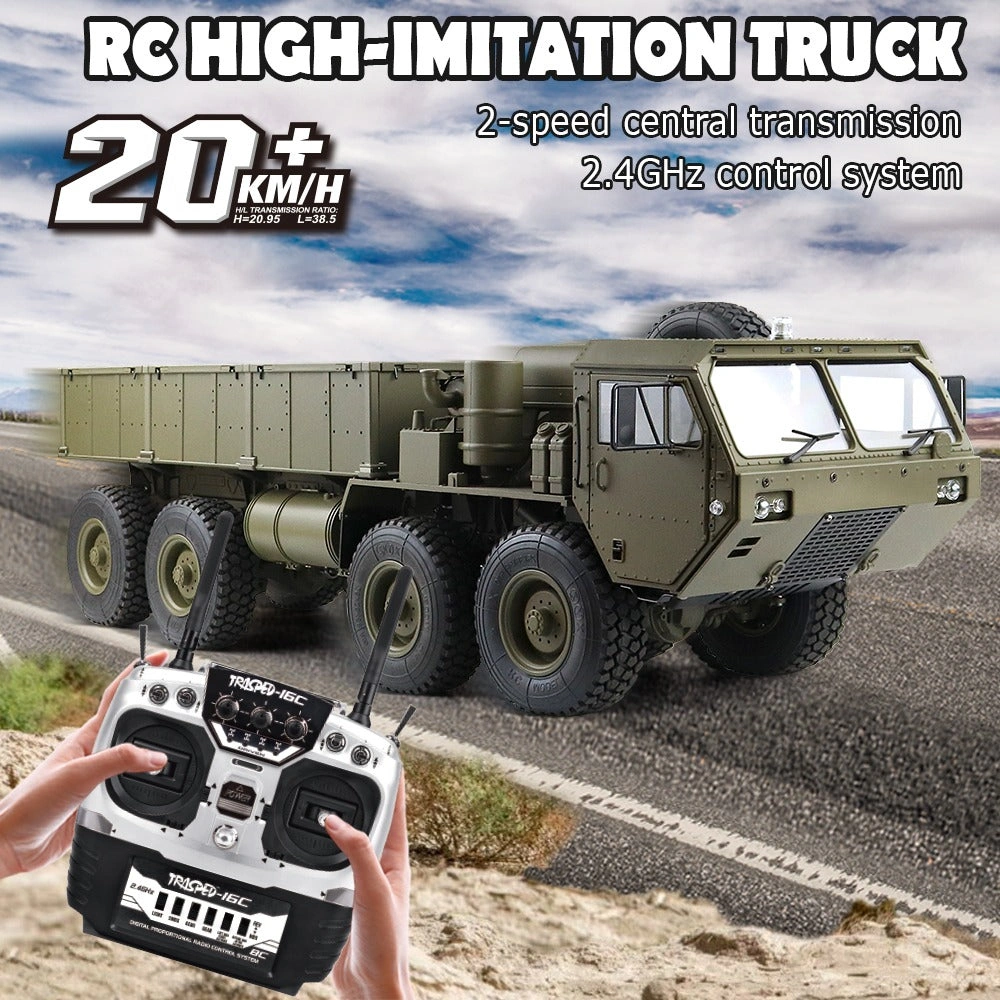

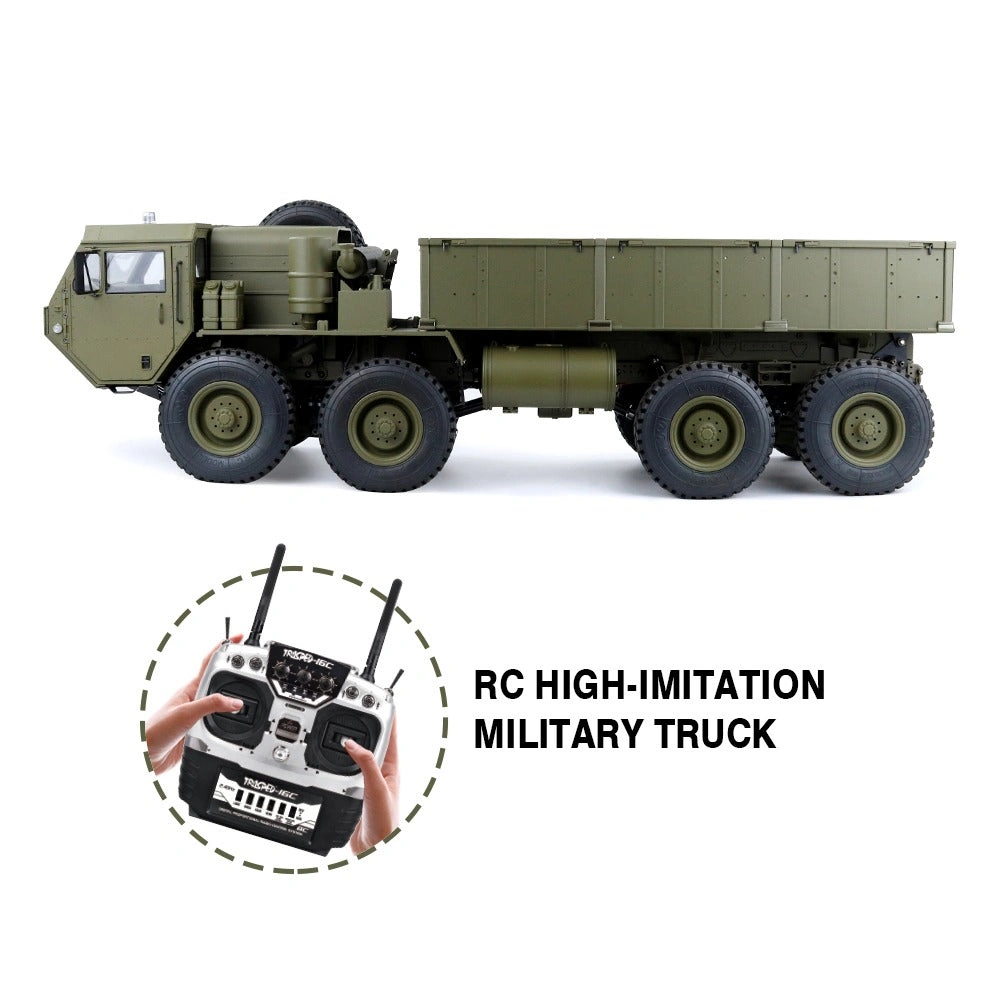

HG-P801 RC OSHKOSH HEMTT

$44.82 $89.63

Version:

num:

Product name	HG-P801 RC OSHKOSH HEMTT

Product size	742224CM
Wheelbase	(12.8CM)×25.8CM×(12.8CM)
Wheel distance	21.85CM
Wheel diameter	R11.1CM
Packing size	783028CM
CTN size	9329.834CM

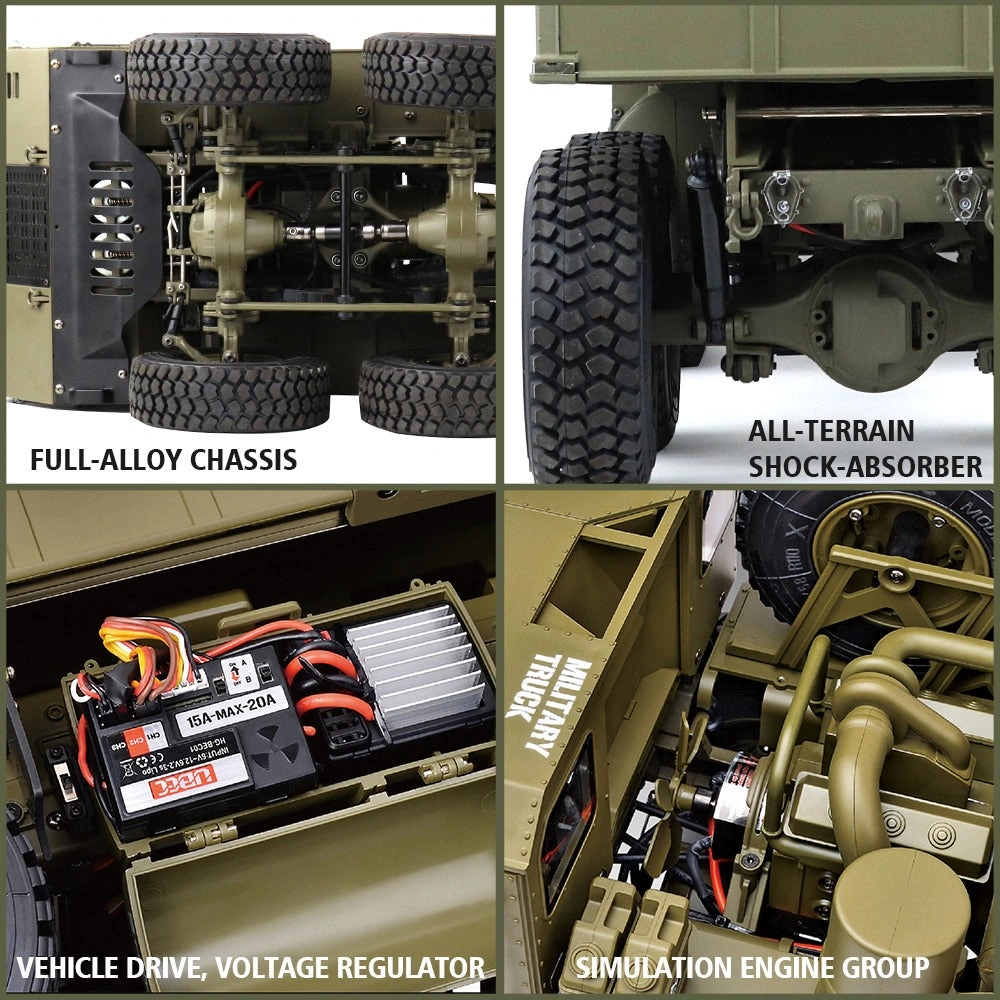

Main functions	1. 7.4V 3000mAh 30C large-rate lithium battery. 2. 2.4G three-channel automatic frequency matching and full-scale synchronous remote control system 3. 2 9kg copper-tooth digital steering gears (high-power steering) 4. Steering steering gear independent power supply mode 5. The secondary mechanical gear position of the central transmission is adjustable (upgradeable remote control adjustment) 6. The chassis structure of the whole vehicle is made of zinc alloy material 7. The front and rear axles adopt bevel-to-straight-tooth high-load reduction transmission structure. 8. Spring steel sheet shock absorber + telescopic double shock absorber 9. Variable stroke universal drive shaft 10. Front and rear independent linkage bridge suspension system 11. The side panels of the rear side of the car can be fully opened. 12. The aluminum alloy of the body floor 13. 8x8/8-wheel full-time drive, 550 high torque motor (3650 brushless motor) using planetary gear drive structure 14. Vehicle 1:12 full-scale high simulation model; 320A independent electronic governor/45A brushless ESC 15. The lighting combination and simulation sound combination can be upgraded under any platform modification 16. The first 4 wheels adopt a wire rope pulling structure to realize the same direction and synchronous steering of the four wheels
Packing List	Manual 1 Sticker 1 7.4V balance charger 1 7.4V 3000mAh lithium battery 1 1.5mm hexagon socket screwdriver 1 2.0mm Allen key 1 2.5mm Allen key 1 Cross wrench (small) 1 Cross beam bolt 2 Small wrench 1 M4 flange nylon locknut 2 M44 drill screw 2 HM26mm screw 60 HM210mm screw 2 TM26mm screw 12 Nylon cable tie 3200mm 4 Body side panel hook 12 Canopy frame limit piece 24 Towing hook at both ends 4 M2 nut 4 Mudguard (L) 2 Mudguard (R) 2 Reflector (L) 1 Reflector (R) *1
QTY/CTN	1 PCS
Package	COLOR BOX
G.W/N.W	13.8/11.4KGS

1. Maximum climbing angle: 35° in low gear; 15° in high gear
2. Maximum wading depth: 55mm
3. The maximum load capacity of the cargo hopper: 10KG
4. Minimum turning radius: about 1 meter
5. Maximum ditch width: 180mm

1: Charging protection: protection function for battery overcharge and overcurrent.
2: Low voltage protection: The receiver protects when the battery is low.
3: High temperature protection: When the receiver's operating temperature is higher than the setting, the receiver will protect the drive control circuit; it will resume work after the temperature is normal.
Remarks: This model is equipped with full-scale synchronous control functions such as forward, backward, left and right turning, and braking.
